4 heads Automatic liquid filling machine with conveyor PLC control

Overview

1. System Overview:

The machine consists of 4 independent filling heads, allowing for simultaneous filling of 4 different products.

A conveyor belt transports the containers to the filling position and then carries them to the next stage of the production process.

2. PLC Control System:

The machine is equipped with an advanced Programmable Logic Controller (PLC) to automate the entire filling operation.

The PLC-based control system enables programmable parameters, such as fill volume, liquid level detection, and other settings, to be adjusted for different products.

The user-friendly PLC interface provides operators with easy access to monitor and modify production parameters in real-time.

3. Key Features:

Automated liquid aspiration and precise volume filling for each container.

Liquid level detection to ensure complete filling of each container.

Continuous production through the integrated conveyor belt system.

Flexible filling head design accommodates a wide range of product viscosities and container sizes.

4. Benefits:

Increased production efficiency and reduced labor costs by automating the filling process.

Consistent product quality and reduced risk of human errors.

Versatile application across various industries, including food and beverage, cosmetics, pharmaceuticals, and chemicals.

Easy operation and maintenance due to the PLC-based control system.

The surface of the equipment suitable for liquids is made of 304 stainless steel, which is easy to clean. No dead angle, fully comply with national GMP standard requirements.

Main Features

1. Multi-Head Filling Capability:

The machine is equipped with 4 independent filling heads, allowing for simultaneous filling of up to 4 different liquid products.

This multi-head design enhances production capacity and efficiency.

2. Automated Filling Process:

The machine automates the entire liquid filling operation, from container positioning to fill volume control.

Precise volumetric filling is achieved through the use of advanced metering systems.

3. Integrated Conveyor Belt:

A conveyor belt system transports the containers to the filling stations and then carries them to the next stage of production.

The automated conveyor ensures a continuous and efficient production flow.

4. Programmable PLC Control:

The machine is equipped with a Programmable Logic Controller (PLC) that manages the entire operation.

The PLC allows users to easily program and adjust various parameters, such as fill volume, fill speed, and liquid level detection, to accommodate different product requirements.

5. User-Friendly Interface:

The PLC control system features a user-friendly interface, enabling operators to monitor and adjust the machine's performance in real-time.

This intuitive interface simplifies the operation and setup of the machine.

6. Flexible Design:

The machine's filling heads are designed to handle a wide range of liquid viscosities and container sizes, making it versatile for various applications.

This flexibility allows the machine to be used across different industries, including food and beverage, cosmetics, pharmaceuticals, and chemicals.

7. Reliability and Maintenance:

The machine is built with durable components and materials to ensure reliable and long-lasting performance.

The PLC-based control system and easy-to-access design facilitate routine maintenance and troubleshooting.

These key features of the 4-head automatic liquid filling machine with conveyor and PLC control make it a highly efficient and adaptable solution for various liquid filling applications.

304 stainless steel frame

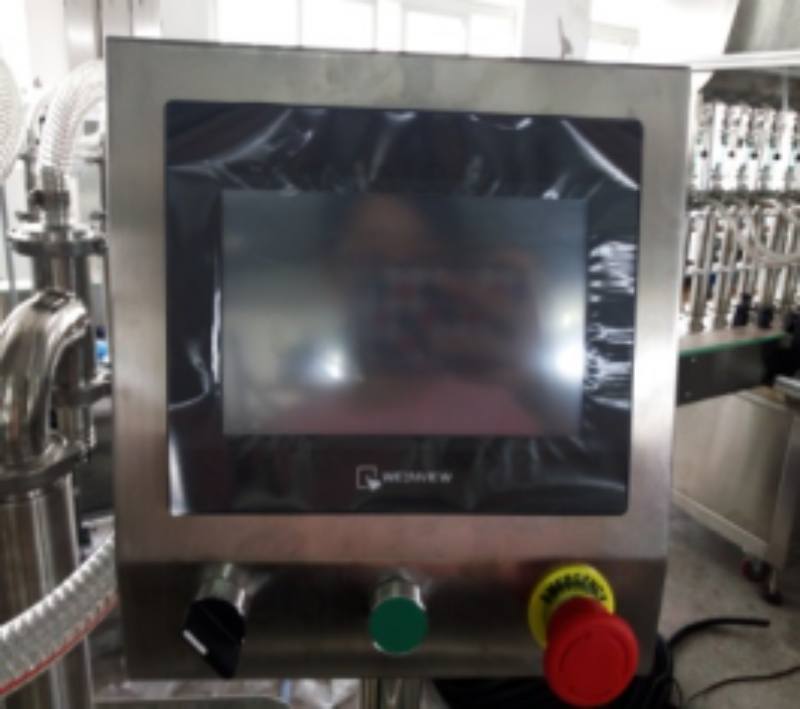

Touch Screen

PLC

Optical Sensor

Material Cylinder

Filling nozzle

Main Technical Parameters
