BA-DSL-16C Automatic 16 Channel Vibration Intelligent Visual Capsule Counting Machine

BA-DSL-16C Automatic 16 Channel Vibration Intelligent Visual Capsule Counting Machine

This visual sensing automatic pill counting machine is an efficient and accurate drug counting equipment that can be widely used in medicine, health care products and other industries. It uses advanced visual sensing technology to automatically identify and count tablets of various shapes, greatly improving production efficiency and counting accuracy. At the same time, the equipment is simple to operate and easy to maintain, and is one of the important equipment indispensable for modern production lines.

  • Product Name :

    BA-DSL-16C Automatic 16 Channel Vibration Intelligent Visual Capsule Counting Machine
  • Certification :

    cGMP CE ISO SGS and etc.
  • Lead Time :

    15 Days Fast Delivery.
  • Loading Port :

    Guangzhou/Shenzhen / Shanghai
  • Product Function :

    #000-5 capsule, soft capsule, Ø3-25mm tablet,shaped,sugarcoated tablet and Ø3-25mm pill
  • After-Sales Provided :

    Engineers available to service machinery overseas.
  • Warranty :

    1 Years
  • MOQ :

    1

Overview



 BA-DSL-16C Automatic 16 Channel Vibration Intelligent Visual Capsule Counting Machine is an efficient and accurate drug counting equipment that can be widely used in medicine, health care products and other industries. The equipment uses advanced visual sensing technology to automatically identify and count tablets of various shapes, greatly improving production efficiency and counting accuracy. At the same time, the equipment is simple to operate and easy to maintain, making it one of the indispensable and important equipment for modern production lines. This equipment has the characteristics of high resolution, double-chip recognition, particle removal, particle dust prevention, full-process recording, simple operation, stable scanning cycle, powerful human-machine interface and convenient system maintenance, and can meet various production requirements. , and help improve production efficiency and reduce production costs.



Main Features



No blockageTwo discharge ports, compatible with sleeve-type bottle placement, customizable leak spout, customized according to the inner diameter of the bottle mouth.Special designed hopper mouth, to prevent the drug blockage, even bottle with small mouth can be quickly filled.



Enhanced full line compatibility: Electric lifting, adjusting the track height according to the bottle height, taking into account bottles of different sizes.controlled by micro-computer and anti-dust technology, this machine can be used for tablets (including irregular shape of tablets), capsules, soft capsules (including irregular shapes, transparent or colorful gels), pellets and most other kinds of medicines and tabloids.





No harm for materials: feeding and output are stable and averagely, will do no harm on materials. Filling accuracy is guaranteed.

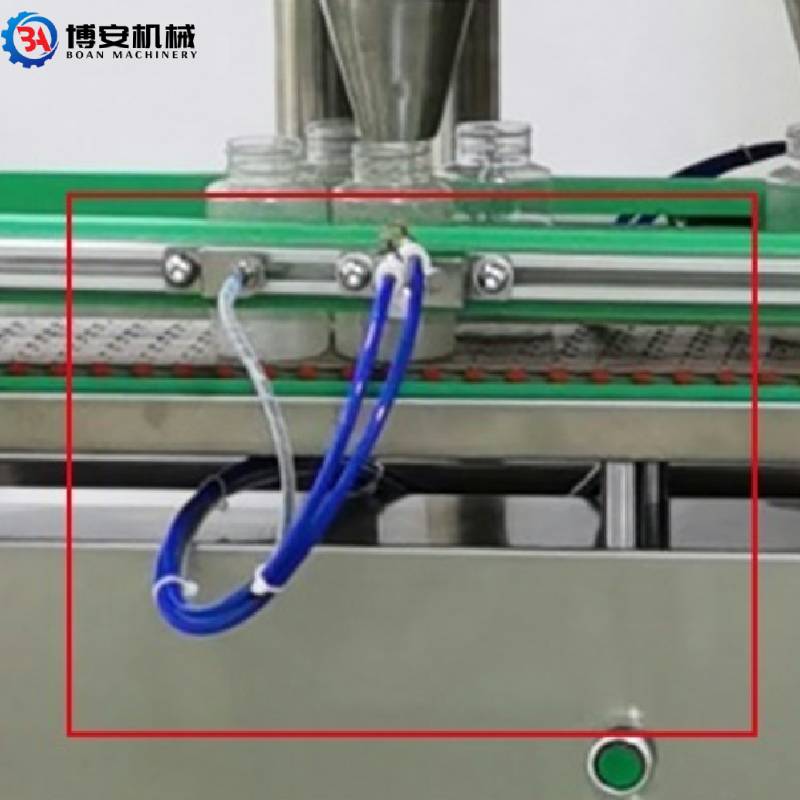

Detection function: machine will not count without detecting bottles' availability, and will automatically reject abnormal filled bottles, and a certain degree broken of crushed tablets reject, self-diagnose, and alarm control system.







Anti-dust: Specially designed high anti-dust sensor technology, to ensure the machine running normally under heavy dust .



Main Technical Parameters:



Production capacity

20~80 bottles/min

Counting Precision

99.5%

Applicable target

#000-5 capsule, soft capsule, Ø3-25mm tablet,shaped,sugarcoated tablet and Ø3-25mm pill

Filling range

1-9999 grains (tablets) adjustable

Applicable bottle type

10-500ml round, square bottle(The feeder can be customized according to the size of bottle neck.)

voltage

380/220V    50Hz

power

1.2KW

pressure

0.6Mpa

Production capacity

3645L/min

weight

550kg

Outline dim.(mm)

1500×1360×1670mm
