BA-DSL-16Lane Automatic Capsule Counting Machine

BA-DSL-16Lane Automatic Capsule Counting Machine

Primarily used in the pharmaceutical, healthcare, and supplement industries to automatically count and package various capsule sizes.

Helps improve packaging efficiency and accuracy, reducing manual errors.

  • Product Name :

    BA-DSL-16Lane Automatic 16 Lane Capsule Counting Machine
  • Certification :

    cGMP CE ISO SGS and etc.
  • Lead Time :

    15 Days Fast Delivery.
  • Loading Port :

    Guangzhou/Shenzhen / Shanghai
  • Product Function :

    #000-5 capsule, soft capsule, Ø3-25mm tablet,shaped,sugarcoated tablet and Ø3-25mm pill
  • After-Sales Provided :

    Engineers available to service machinery overseas.
  • Warranty :

    1 Years
  • MOQ :

    1

Overview

BA-DSL-16 Lane Automatic Capsule Counting Machine is an automated equipment which is mainly used for counting and loading various solid preparations or solid particles such as tablets, capsules, soft capsules, pills and so on.

1. Accurate counting: 16 Lane Automatic Capsule Counting Machine can accurately count the bottles to be filled to ensure accurate drug dosage.

2. High Dust Resistance: Some models adopt high dust resistance photoelectric sensing technology, which can work stably even in high dust environment.

3. No loss of material: the feeding and discharging process is even and smooth, adopting patented dispensing structure to avoid loss of material and ensure accurate bottling.

4. Alarm function: with no bottle, abnormal photoelectric box or photoelectric box channel blocking alarm function.

5. Anti-clogging design: special structure of the leakage nozzle design, can prevent the medicine from clogging, suitable for small bottle mouth of the medicine bottle rapid bottling.

6. Optional functions: some models can be equipped with dust removal device, static electricity removal device, sound and light alarm, as well as additional functions such as hopper lack of material detection, residual tablets detection, online weighing detection, and so on, as required.

7. GMP compliance: The design and production process strictly comply with GMP (Good Manufacturing Practice) to ensure product quality and safety.

8. Technical parameters: for example: the range of applicable bottle types, filling objects, production capacity, bottle volume setting range, power supply and power, precision, air supply, external dimensions, etc. have detailed technical parameters.



From these features, we can see that the 16 Lane Automatic Capsule Counting Machine not only improves the production efficiency, but also ensures the accuracy of drug counting and the stability of the production process.





Main Features

Dimple teflon material hopper

Hopper with mixing blade,which can better separate the gummy.

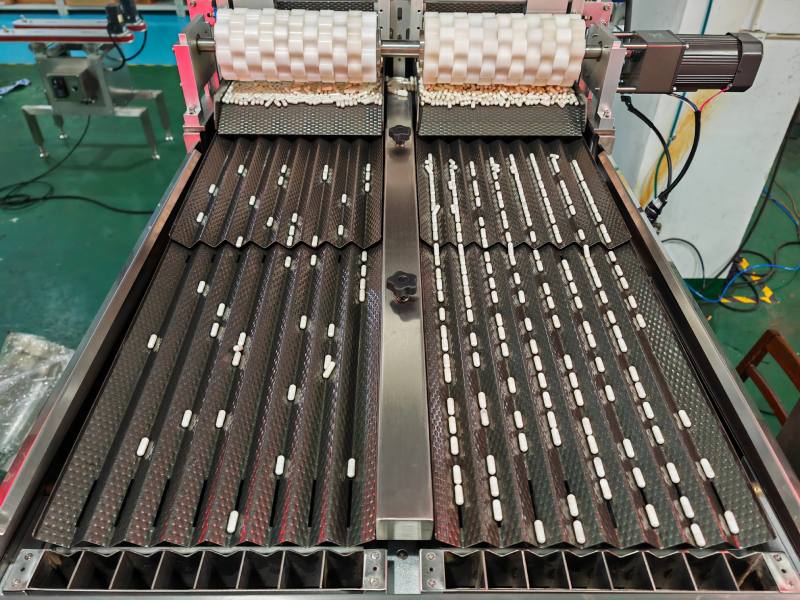

Three grade vibrating lane, which can separate the product better.

Filling hopper adapt food-grade standard Teflon material

Bottle filling

Touch screen display and multi-ground recipe storage.

Main Technical Parameters:



Model

BA-DSL-16 Lane capsule counting machine

Vibrating groove track

16 lane

Production capacity

20-80 bottles/min

 Accuracy rate

99.97%

Filling range

9999 grains

Applicable target

Tablet:Φ325mm ,pill:Φ320mm,

hard capsule/soft capsule:0005#

Applicable bottle type

Φ25120mm round and square bottle, height ≤240 mm

Voltage

AC380V  3P 50/60HZ

Power

2.2KW

Pressure

0.4 0.6Mpa

Air consumption

120L/min

Hopper capacity

45L

weight

650kg

Outline dim.(mm)

1200×1550×1750mm
