BA-TSL-2B Desktop Counting Machine

BA-TSL-2B Desktop Counting Machine

BA-TSL-2B Desktop Counting Machine are desktop counting equipment with reasonable design, compact structure, convenient use and high counting efficiency. It can be widely used in counting of various shapes and sizes of tablets, capsules, pills.This machine is a desktop electronic pill counting machine that can be placed on the table to facilitate operation by multiple people. It is suitable for pharmaceutical, medical, food and other industries.

  • Product Name :

    BA-TSL-2B Desktop Counting Machine
  • Certification :

    cGMP CE ISO SGS and etc.
  • Lead Time :

    15 Days Fast Delivery.
  • Loading Port :

    Guangzhou/Shenzhen / Shanghai
  • Product Function :

    Capsule size 00#-5# and safety capsule A-E
  • After-Sales Provided :

    Engineers available to service machinery overseas.
  • Warranty :

    1 Years
  • MOQ :

    1

Overview

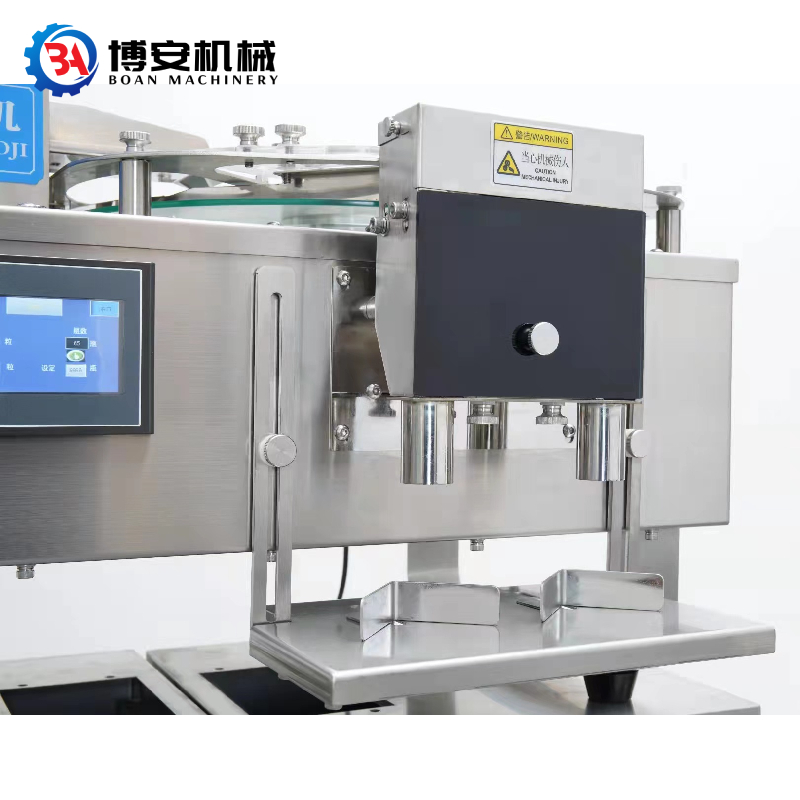

This product is a portable desktop counting machine newly developed by our company, which complies with GMP requirements.It using advanced optical fiber detection, the accuracy rate is 99.98%, which is higher than the industry standard.BA-TSL-2B Desktop Counting Machine  the structure of vibrating feeding and turntable sorting, and occupies a small area (735mm*580mm*720mm).This machine adopts PLC intelligent control, variable frequency stepless speed regulation, independent detection of material size, fast counting speed, user-friendly operation and easy maintenance.This counting machine can count and pack of solid particles, such as tablets, capsules (transparent or non-transparent hard capsules, soft capsules), pills from 5 to 25mm wide into bottles,boxes and bags. It meets the requirements of GMP, suitable for research institutions, hospitals, small and medium sized enterprises and health care product plants.



Main Features



1.Special electric eye protection device to ensure accurate counting of pills.High precision, using optical fiber detection, the accuracy rate of counting cans is > 99.98%, which is higher than the industry standard.



2.Good compatibility and wide application range. Tablets, pills, hard capsules, soft capsules (transparent and opaque) can be counted and filled.Fast speed, the maximum counting speed can reach 2000 grains/min.







3.The machine is small in size (735mm*580mm*720mm), weighs 50kg, and is easy to operate.The machine has high cost performance, low maintenance cost, and the original machine is equipped with wearing parts for one year.Using continuously variable vibration blanking, the blanking is uniform and stable.







4.The material is sorted by a tempered glass turntable, and the feeding adopts cross guide rails, and the number of particles is stable.Adopt advanced PLC control, high level of intelligence, convenient setting for each bottle, and visualization of the total count.The bottom plate has the function of lifting and lowering adjustment, which can fill bottles or bags of various specifications.









5.The machine vibrator has the function of shock absorption, and the running noise is low.The machine is equipped with a dust removal device, which collects dust centrally, reduces pollution, and is more adaptable to materials with more dust.The drug contact parts are made of 316L stainless steel and engineering plastics (PET or PTFE) that meet FDA standards. The materials are environmentally friendly and meet CGMP standards.All control appliances of this model are imported products from the United States, Germany and Japan, with high configuration and strong stability.





Main Technical Parameters



Model

BA-TSL-2B

Type

Turntable

Output

600-2050 pcs/min

Accurate rate

99.98%

Loading Capacity for Per Bottle

1 9999 pcs

Applicable material

Φ5~25mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules

Applicable bottle

Φ2575mmround and square plastic bottle, height 30-180mm

Power

220V/50-60Hz

Total Power

0.1KW

Silo capacity

20L

Weight

50kg

Overall Size

735*580*720mm





No.

Item

Specifications

Qty.

Manufacturer

1

Counting Fiber

M24.8

1

RQ1478

3

Fiber Optic Sensor

M4SB10-M7

1

Panasonic

4

Fiber optic sensor head

FR401

1

Panasonic

5

PLC controller

FP-C32TH

FPO-E16YT

1

Delta

6

Touch screen

GE4408W

1

Flexem Technology

7

Relay head

QS18VN6DB

1

Schneider

8

AC contactor

GMC-9

1

Korea LG

9

Relay base

QS18VN6DB-1

1

Schneider

10

Power switch

ABW310EG

1

Delta
