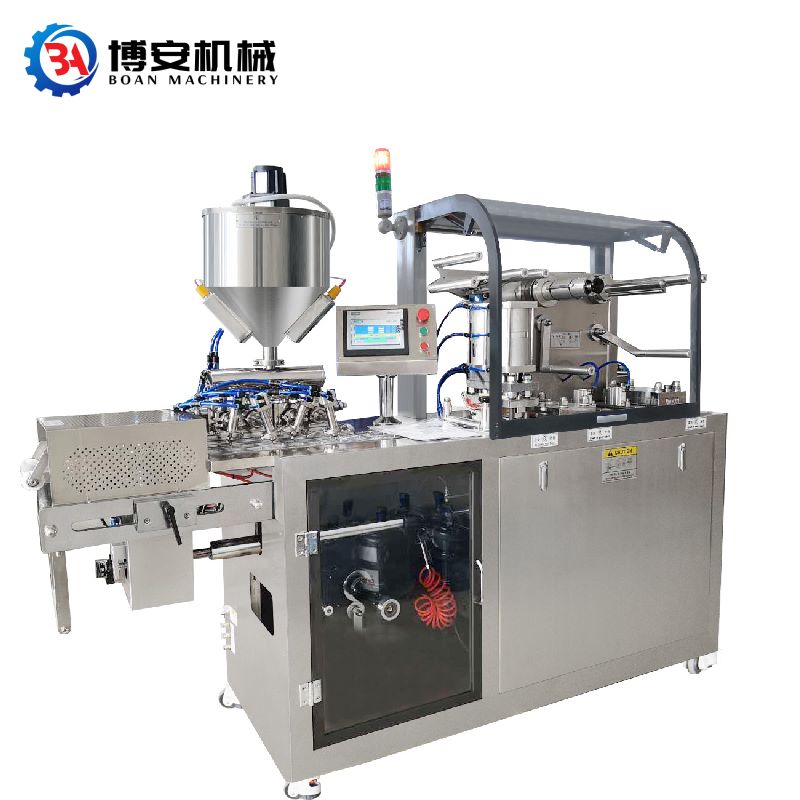

DPP-150 Pro High Precision liquid stainless steel scrubber blister pack machine
The high precision liquid stainless steel scrubber blister pack machine is a specialized packaging machine designed specifically for blister packaging liquid stainless steel scrubbers. It is built with high precision and accuracy to ensure the proper packaging of the product.
Product Name :
DPP-150 Pro High Precision liquid stainless steel scrubber blister pack machine machine blister pack sauceCertification :
cGMP CE ISO SGS and etc.Lead Time :
15 Days Fast Delivery.Loading Port :
Guangzhou/Shenzhen / ShanghaiProduct Function :
110*120*25After-Sales Provided :
Engineers available to service machinery overseas.Warranty :
1 YearsMOQ :
1Overview
DPP-150 Pro High Precision liquid stainless steel scrubber blister pack machine is of flat-plate structure, withmolding, heating, adjustable travel range, for small size of body and ease of operation. It is applied to Al-Al, Al-PVC, Al-plastic packaging for candy, healthcare, small hardware etc. It is widely used in small industry factory, preparation-room of hospital institutelaboratory, mini-motor test workshop. The machine reaches advanced level in China. It is suitable for honey,candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in food, healthcare, food, cosmetics equipment industry etc.
Machine Features
The machine features a stainless steel construction, which ensures durability and easy cleaning. It is designed to handle liquid products, such as sauces, and package them securely in blister packs.
Some key features of the high precision liquid stainless steel scrubber blister pack machine may include:
1.Liquid filling system: The machine is equipped with a liquid filling system that accurately dispenses the desired amount of liquid into each blister pack.
2.Blister forming: It has a blister forming station that molds the plastic material into the desired shape to hold the liquid stainless steel scrubbers.
3.Sealing mechanism: The machine seals the blister packs to ensure the liquid product remains secure and leak-proof during transportation and storage.
4.Labeling and coding: It may have an optional labeling and coding system to print batch numbers, expiry dates, or other product information on the blister packs.
5.PLC control system: The machine is typically equipped with a programmable logic controller (PLC) that allows for easy operation and control of the packaging process.
6.High precision and accuracy: The machine is designed to provide precise and accurate packaging of liquid stainless steel scrubbers, ensuring consistent quality.
Main Technical Parameters
Machine model |
DPP - 150 Pro |
Maximum yield |
1200-4200 plates / hour |
Blanking frequency |
10-35 times/minute
|
Maximum molding area |
130*100*26 MM |
Standard stroke range |
50-120 MM |
Standard section |
80*57MM |
air pressure |
0.4-0.6Mpa |
Mold cooling |
tap water/Recycled water
|
Noise index |
<75dBa |
PVC hard sheet |
0.15-0.5*150 MM |
PTP aluminum foil |
0.02-0.035*150 MM |
dialysis paper |
50-100g*150 MM |
Total power of power supply |
380V/220V 50Hz 3.8kw |
weight |
890 KG |
size |
2500*800*1780 MM |
