The main application of this DPP-150L model high precise small liquid blister packing machine is used to by Al Al foil or Al foil and PVC plastic film to pack liquid products, such as special medicine liquid, food liquid, etc, the most stable and highest precision small liquid blister packaging machine in China.
Product Name :
DPP-150L Model High Precision Liquid Al PVC Film Small Blister Packing MachineCertification :
cGMP CE ISO SGS and etc.Lead Time :
15 Days Fast Delivery.Loading Port :
Guangzhou/Shenzhen / ShanghaiProduct Function :
130x100mm(Standard depth ≦15mm, max. Depth=26mm, as adjusted)After-Sales Provided :
Engineers available to service machinery overseas.Warranty :
1 YearsMOQ :
1Overview
DPP-150L liquid blister packing machine can equip different feeding pump, such as peristaltic pump , piston pump or ceramic pump, which is suitable for packing water,perfume,air freshener, jam, sauce, chocolate,honey or lotion into blister pack.
Blister packing machine is suitable for aluminum-plastic, paper-plastic, aluminum-aluminum composite sealing packaging of capsules, tablets, honey pills, candies, liquids, pastes, disposable syringes and shaped objects in pharmaceutical, health care, food, cosmetic and medical equipment industries. The machine adopts microcomputer programming control, frequency conversion speed regulation, touch panel operation, high degree of automation, is very ideal blister packaging equipment.
Main Features
1.Traction drive by servo motor, with precise synchronization. The length of travel range can be set in man-machine interface.
2.Equipped with eye marking system, the background of printed pattern is uniform and looks pleasant.
3.Available for alu-plastic (hot forming) and alu-alu (cold forming), only change mould and feeder for alu-alu packing.
4.The electrical appliances adopt imported control system, and can be equipped with missing material mending device and missing grain detecting and rejecting device according to user's requirements.
5. The whole machine adopts segmented combination: PVC forming, filling and heat sealing as one section, tropical aluminum cold forming, heat sealing and punching as one section, so as to realize segmented packaging.
6. Adopting photoelectric control system, PVC, PTP, Duralumin ( Aluminum/Aluminum material) packaging automatic feeding, waste edge automatic punching and cutting device, to ensure ultra-long distance multi-station synchronization and stability.
7. Packing flow process:
Shape forming (up and down heating)→Heating and sealing(up heating)→Letters embossing → Impressing → Cutting → Finished product output
PVC Forming Frame
Hot Forming-Heating Plate coated with Teflon
Fillling and Feeding device, the filling rate reachesd 99.5%
Piston Pump
Liquid Tank
Servo with Photoelectric alignment control system
PLC control system
Adjustable size accoording to roller of material and record

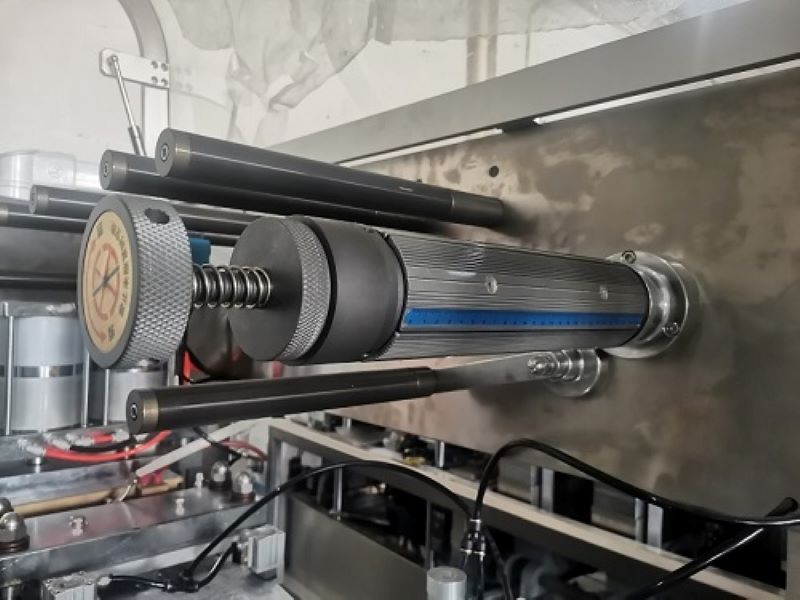

Traction with Servo, Screw and locking
Tropical aluminum cold forming, heat sealing and punching
Automatic punching and cutting device
Finished product outlet and the waste edge will be 1-2mm can be adjusted
Collect the waste edge
Main Technical Parameters
Machine model |
DPP - 150L |
Maximum yield |
1200-4200 plates / hour |
Blanking frequency |
10-35 times/minute |
Maximum molding area |
130*100*26 MM |
Standard stroke range |
50-120 MM |
Standard section |
80*57MM |
air pressure |
0.4-0.6Mpa |
Mold cooling |
tap water/Recycled water
|
Noise index |
<75dBa |
PVC hard sheet |
0.15-0.5*150 MM |
PTP aluminum foil |
0.02-0.035*150 MM |
dialysis paper |
50-100g*150 MM |
Total power of power supply |
380V/220V 50Hz 3.8kw |
weight |
890 KG |
size |
2500*800*1780 MM |
