DPP-250 Alu Plastic Flat Plate Tablet Pill Capsule Blister Packing Machine
DPP-250 plate type automatic blister packaging machine (cover), applicable to the pharmaceutical, food, health products, medical equipment and other industries of the capsule, tablet, pill, candy, disposable syringes and special-shaped material, aluminum plastic, aluminum composite sealing packaging.
Product Name :
DPP-250 Alu Plastic Flat Plate Tablet Pill Capsule Blister Packing MachineCertification :
cGMP CE ISO SGS and etc.Lead Time :
15 Days Fast Delivery.Loading Port :
Guangzhou/Shenzhen / ShanghaiProduct Function :
250*140*15mm Max. Depth 26mm(custom-made)After-Sales Provided :
Engineers available to service machinery overseas.Warranty :
1 YearsMOQ :
1Overview

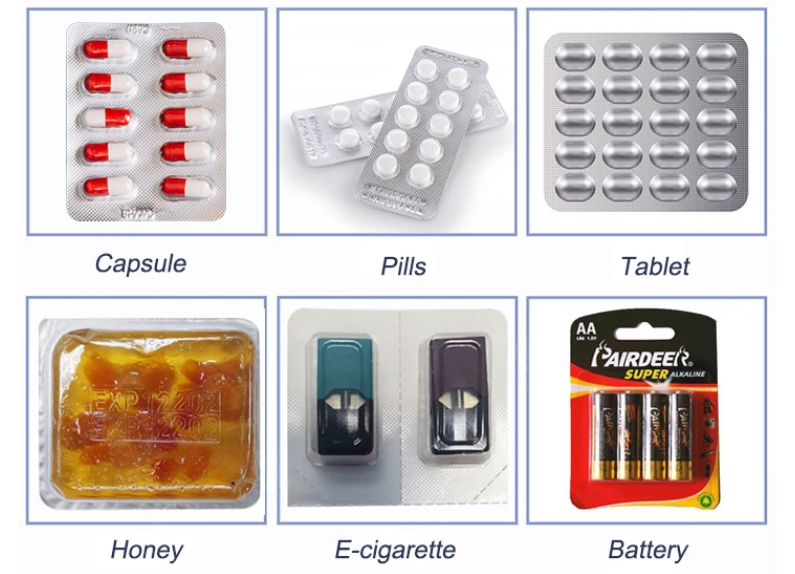

DPP-250 Blister Packing Machine is widely used for packing tablets,capsules,candy,chew gum and other similar shape solid articles with alu-plastics & alu-alu blister in the pharmaceutical, chemical, foodstuff industries.
The machine can finish the following actions automatically: Aluminium foil or Plastic (PVC) blister forming, automatic material feeding, PTP alu-foil press and heat-sealing, press the batch number & perforation and punching.
Main Features
1. Traction drive by servo motor, with precise synchronization. The length of travel range can be set in man-machine interface. The traction stroke can be adjusted within the range of 10 to 500mm, which expands the application range of the machine.
2. Equipped with eye marking system, the background of printed pattern is uniform and looks pleasant.
3. Available for alu-plastic (hot forming) and alu-alu (cold forming), only change mould and feeder for alu-alu packing.
4. The electrical appliances adopt imported control system, and can be equipped with missing material mending device and missing grain detecting and rejecting device according to user's requirements.
5.The whole machine adopts segmented combination: PVC forming, filling and heat sealing as one section, tropical aluminum cold forming, heat sealing and punching as one section, so as to realize segmented packaging.
6.Adopting photoelectric control system, PVC, PTP, Duralumin packaging automatic feeding, waste edge automatic punching and cutting device, to ensure ultra-long distance multi-station synchronization and stability.
7.It utilizes frequency conversion stepless speed regulation, with blanking frequency 10~55 times/min.
8.Automation by PLC and operation through touch screen control panel.
Foil Forming
Filling and feeding device, filling rate reaches 99.5%
Platform elevation
PLC control system
Automatic punching
Adjustable size according to roll of material and record
Equipped with eye marking system
Traction with Servo, Screw and locking
Finished product outlet and the waste edge will be 1-2mm can be adjusted
Collet the waste edge
Servo with photoelectric alignment control
Main Technical Parameters
Machine model |
DPP-250 |
Blanking frequency |
6-50 times/minute |
Maximum molding area |
250*140*15mm Max.Depth 26mm ( Customized) |
Standard travel range |
40-160 MM |
Mold Cooling |
Tap water or Circulating water |
Power of Main Motor |
1.5 KW |
Total Power |
6.2 KW |
Power |
380V/220V 50Hz |
Noise index |
<75dBa |
PVC hard sheet |
0.15-0.5*250 MM |
PTP aluminum foil |
0.02-0.035*250 MM |
dialysis paper |
50-100g*250 MM |
Vacuum |
0.4MPa-0.6MPa |
weight |
1400 KG |
size |
2750*950*1800 MM |
