DPP-250L Full Automatic Power Blister Paper Packaging Machine For Medical Device
DPP-250L liquid blister packing machine can equip different feeding pump, such as peristaltic pump , piston pump or ceramic pump, which is suitable for packing water,perfume,air freshener, jam, sauce, chocolate,honey or lotion into blister pack.
Product Name :
DPP-250L Full Automatic Powder Blister Paper Packaging Machine For Medical DeviceCertification :
cGMP CE ISO SGS and etc.Lead Time :
15 Days Fast Delivery.Loading Port :
Guangzhou/Shenzhen / ShanghaiProduct Function :
250*140*15mm Max. Depth 26mm(custom-made)After-Sales Provided :
Engineers available to service machinery overseas.Warranty :
1 YearsMOQ :
1Overview
The product is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine body, easy operation, multi-function, stroke adjustable, long durability etc, it is suitable for the Alu-PVC package of medicine, food, electric parts etc. Aided forming Pre‐cutting Inspection and rejecting control systems. Print mark registration Automatic feeder.
Main Features
1.Traction drive by servo motor, with precise synchronization. The length of travel range can be set in man-machine interface.
2.Equipped with eye marking system, the background of printed pattern is uniform and looks pleasant.
3.Available for alu-plastic (hot forming) and alu-alu (cold forming), only change mould and feeder for alu-alu packing.
4.The electrical appliances adopt imported control system, and can be equipped with missing material mending device and missing grain detecting and rejecting device according to user's requirements.
5.The whole machine adopts segmented combination: PVC forming, filling and heat sealing as one section, tropical aluminum cold forming, heat sealing and punching as one section, so as to realize segmented packaging.
6.Adopting photoelectric control system, PVC, PTP, Duralumin ( Aluminum/Aluminum material) packaging automatic feeding, waste edge automatic punching and cutting device, to ensure ultra-long distance multi-station synchronization and stability.
7.Packing flow process:
Shape forming (up and down heating)→Heating and sealing(up heating)→Letters embossing → Impressing → Cutting → Finished product output
PVC Forming Frame
Filling and feeding device, filling rate reaches 99.5%

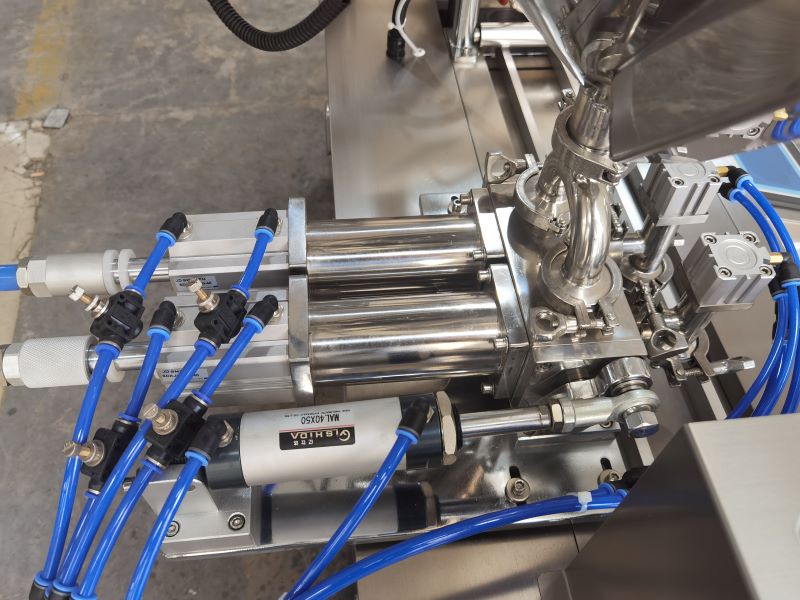

Piston Pump
Liquid Tank
Servo with photoelectric alignment control system

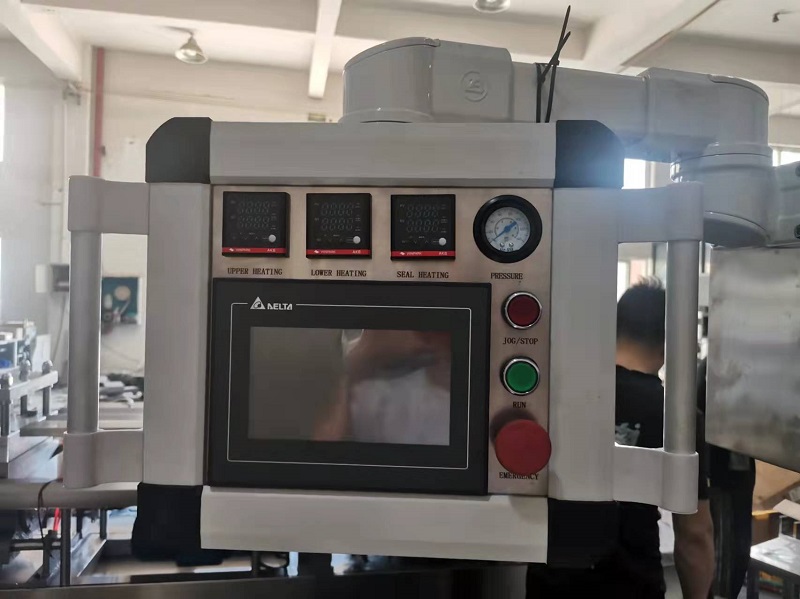

PLC control system
Adjustable size according to roll of material and record
Traction with Servo, Screw and locking
Automatic punching and cutting device
Finished product outlet and the waste edge will be 1-2mm can be adjusted
Collect the waste edge
Main Technical Parameters
Machine model |
DPP - 250L |
Maximum yield |
9600 strips/h |
Blanking frequency |
10- 50 times/minute |
Maximum molding area |
270*150*28 MM |
air pressure |
0.4-0.6Mpa |
Mold cooling |
tap water/Recycled water |
Noise index |
<75dBa |
PVC hard sheet |
0.15-0.5*250 MM |
PTP aluminum foil |
0.02-0.035*250 MM |
dialysis paper |
50-100g*250 MM |
weight |
1500 KG |
size |
3360*610*1670 MM |
