DPP-80 is a special kind of machine automatically pack tablet,capsule,candy, electronic cigarette , perfume and tomato sauce into aluminum plastic composite panel (ACP) or aluminum plate.It is the preferred machine possessing fully automatic shaping,adding,sealing and blanking, which is the preferred products for small and medium sized production in pharmaceutical manufacturing,chemical industry, electronicproductsand food industry, it meets the requirements of GMP.
Product Name :
DPP-80 Plate Automatic Blister Package MachineCertification :
cGMP CE ISO SGS and etc.Lead Time :
15 Days Fast Delivery.Loading Port :
Guangzhou/Shenzhen / ShanghaiProduct Function :
70*110*15mm Max. Depth 25mm(custom-made)After-Sales Provided :
Engineers available to service machinery overseas.Warranty :
1 YearsMOQ :
1Overview

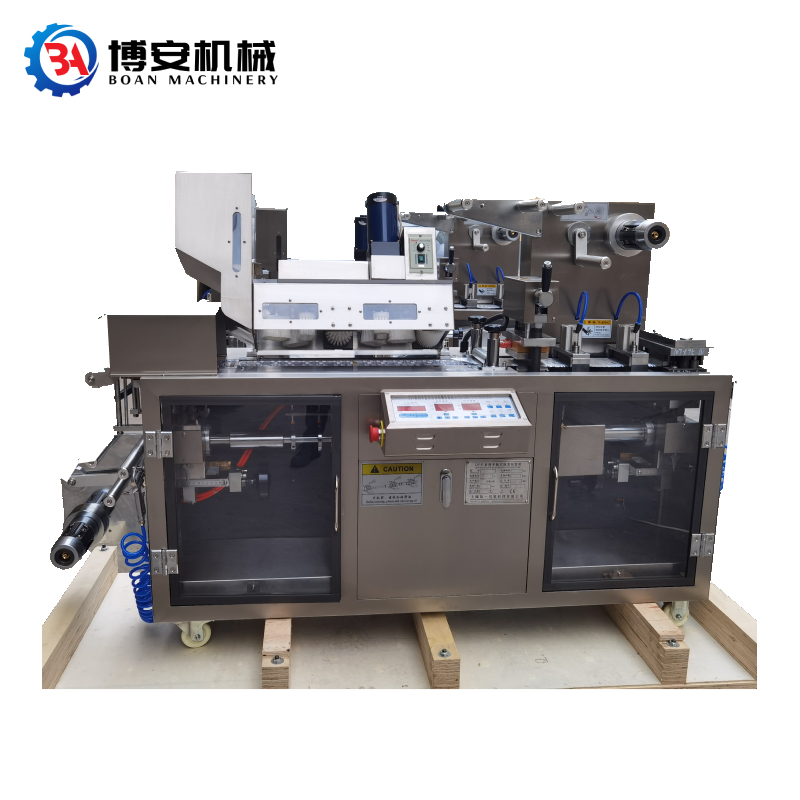

The DPP-80 Plate Automatic Blister Packaging Machine is a versatile and efficient piece of equipment used widely in the packaging sector.
Pharmaceuticals: The machine is suitable for packaging a wide range of pharmaceutical products, including capsules, tablets, and pills.
Healthcare Products: The DPP-80 can be used for packing healthcare items, such as honey pills and other medicinal candies.
Food and Cosmetics: It is also applicable in the food and cosmetics industries for tasks like sealing food items and cosmetic products in blister packs.
Medical Equipment: The machine can be adapted for packaging medical devices and equipment.
The DPP-80 is designed to handle materials such as aluminum-plastic and paper-plastic composites, and it accommodates Al-al and Al-plastic sealing packing. The machine showcases capabilities for PVC blister forming, automatic material filling, PTP aluminum foil flat pressing and heat sealing, and graphic alignment, amongst other functions. It is particularly suited to meet the needs of the dosage room of a hospital, middle and small pharmaceutical manufacturers, and nutrition product factories.
This machine ensures packaging quality with features that can include photoelectric control systems, automatic feed and scrap admission devices, and synchronized multi-step processes. The equipment can bring efficiency and precision to the packaging line, often with the capability to produce thousands of pieces per hour, ensuring both high throughput and reliability.
Main Features
1. The newest type of transmission mechanism is adopted where the row chains lead the main drive shaft to avoid the errors and noises caused by other gear transmission mechanism.
2. The electrical appliances of this machine adopted imported control system. As per the customer’s requirements, it can be optionally equipped with feeding device for missed material, and detection & rejection device (Omron Sensor) for waste product (lack of material).
3. It adopts photoelectric control system and PVC/ PTP/Alu foil auto feeding device, and hard aluminum automatic feeding and waste packing auto-cutting device to ensure the stability of multi-stations at overlong distance.
4. Photoelectric detection and correction device and imported stepper traction motor. As with image-mark printing, the package grade can be optimized.
5. This machine is suitable for the blister packing in food, pharmaceutical, medical instrument, hardware and electronic industries.Here we will focus on introducing the package for capsule, tablet, candy etc.
PVC Forming Frame
Hot forming-Heating plate coated with Teflon
Filling and feeding device, filling rate reaches 99.5%.
PLC control system
Tropical aluminum cold forming, heat sealing and punching
Traction with Servo, Screw and locking
Main Technical Parameters
Machine model |
DPP-80 |
Maximum yield |
2400 tablets / hour |
Blanking frequency |
10-40 times/minute |
Maximum molding area |
80*110*26 MM |
Standard travel range |
20-70 MM |
Standard section |
80*57MM |
air pressure |
0.6-0.8Mpa |
Mold cooling |
tap water/Recycled water |
Noise index |
<75dBa |
PVC hard sheet |
0.15-0.5*80 MM |
PTP aluminum foil |
0.02-0.035*80 MM |
dialysis paper |
50-100g*80 MM |
Total power of power supply |
380V/220V 50Hz 3.2kw |
weight |
450 KG |
size |
1600*600*1100 MM |
