DPP-80L Model High Precision Liquid Al PVC Film Small Blister Packing Machine
DPP-80L is a special kind of machine automatically pack tablet,capsule,candy, electronic cigarette , perfume and tomato sauce into aluminum plastic composite panel (ACP) or aluminum plate.
It is the preferred machine possessing fully automatic shaping,adding,sealing and blanking, which is the preferred products for small and medium sized production in pharmaceutical manufacturing,chemical industry, electronicproducts and food industry, it meets the requirements of GMP.
This machine is suitable for packing jam, chocolate,honey or liquid product into blister pack.
Product Name :
DPP-80L Model High Precision Liquid Al PVC Film Small Blister Packing MachineCertification :
cGMP CE ISO SGS and etc.Lead Time :
15 Days Fast Delivery.Loading Port :
Guangzhou/Shenzhen / ShanghaiProduct Function :
70*110*15mm Max. Depth 25mm(custom-made)After-Sales Provided :
Engineers available to service machinery overseas.Warranty :
1 YearsMOQ :
1Overview
The main application of this DPP-80L model high precision liquid Al PVC film small blister packing machine is used to by Al Al foil or Al foil and PVC plastic film to pack liquid products, such as special medicine liquids, food liquids, etc., the most stable and highest precision small liquid blister packaging machine in China.
Main Features
1. Traction drive by servo motor, with precise synchronization. The length of travel range can be set in man-machine interface.
2. Equipped with eye marking system, the background of printed pattern is uniform and looks pleasant.
3. Available for alu-plastic (hot forming) and alu-alu (cold forming), only change mould and feeder for alu-alu packing.
4. The electrical appliances adopt imported control system, and can be equipped with missing material mending device and missing grain detecting and rejecting device according to user's requirements.
5. The whole machine adopts segmented combination: PVC forming, filling and heat sealing as one section, tropical aluminum cold forming, heat sealing and punching as one section, so as to realize segmented packaging.
6. Adopting photoelectric control system, PVC, PTP, Duralumin packaging automatic feeding, waste edge automatic punching and cutting device, to ensure ultra-long distance multi-station synchronization and stability.
PVC Forming Frame
Filling and feeding device, filling rate reaches 99.5%.
Piston Pump
Liquid Tank

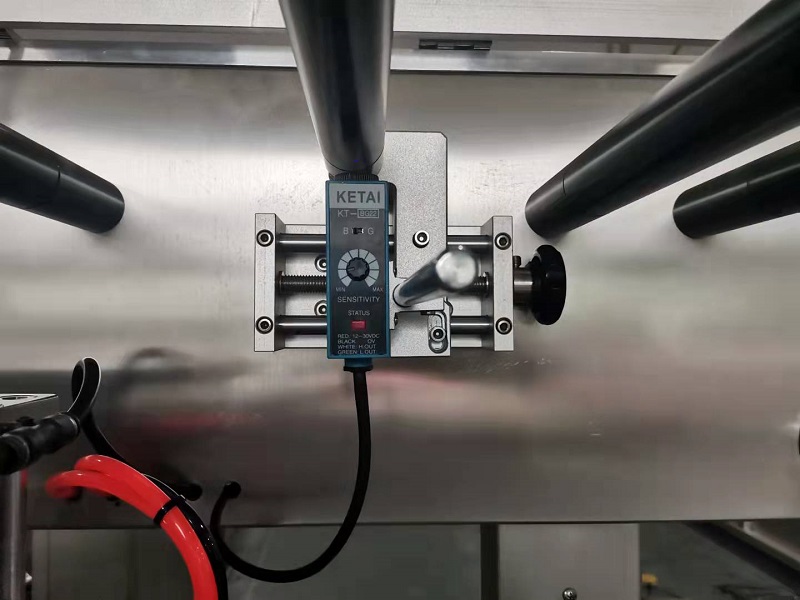

Servo with photoelectric alignment control system
Hot forming-Heating plate coated with Teflon
PLC control system
Adjustable size according to roll of material and record
Tropical aluminum cold forming, heat sealing and punching
Traction with Servo, Screw and locking
Main Technical Parameters
Machine model |
DPP-80L |
Maximum yield |
2400 plates / hour |
Blanking frequency |
10-40 times/minute |
Maximum molding area |
70*105*25 MM |
Standard travel range |
30-80 MM |
Standard section |
80*57MM |
air pressure |
0.4-0.6Mpa |
Mold cooling |
tap water/Recycled water
|
Noise index |
<75dBa |
PVC hard sheet |
0.15-0.5*110 MM |
PTP aluminum foil |
0.02-0.035*110 MM |
dialysis paper |
50-100g*110 MM |
Total power of power supply |
380V/220V 50Hz 2.8kw |
weight |
450 KG |
size |
1840*590*1100 MM |
